PCE manufactures various kinds of high quality Rigid PCBs for Automotive, Communication, Industrial, Medical, and commercial applications.

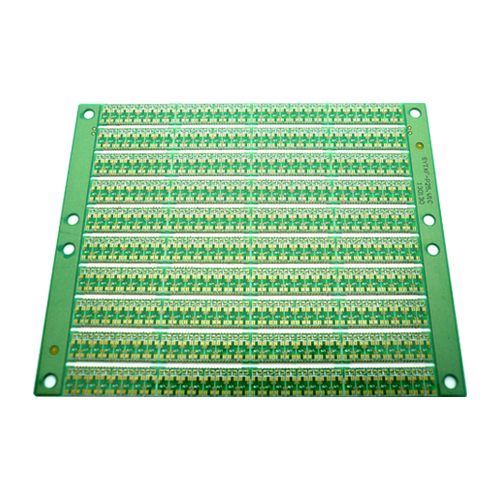

Plated Half Holes

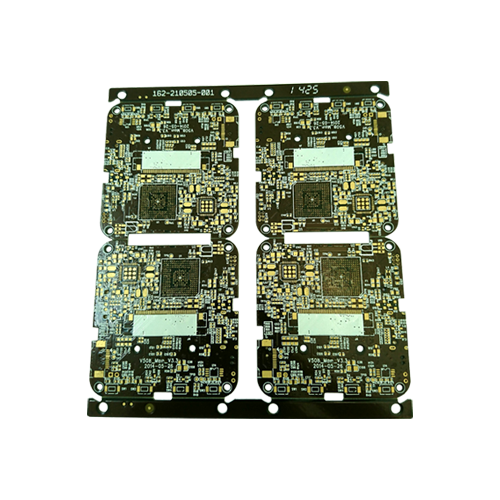

Impedance Control

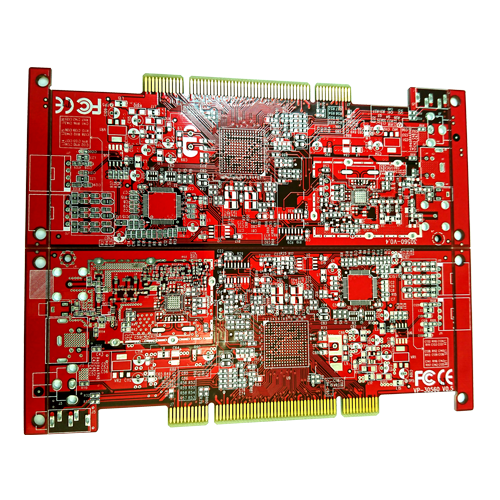

Gold Finger

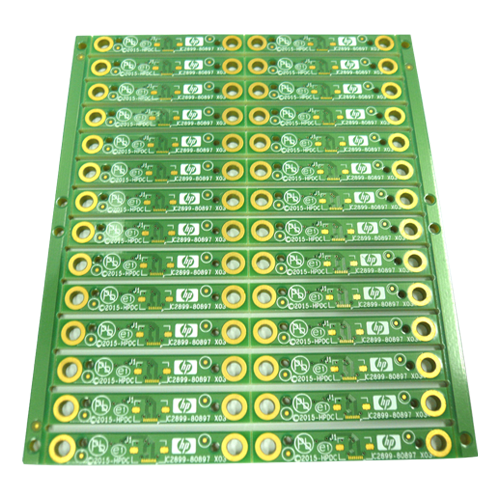

Halogen Free

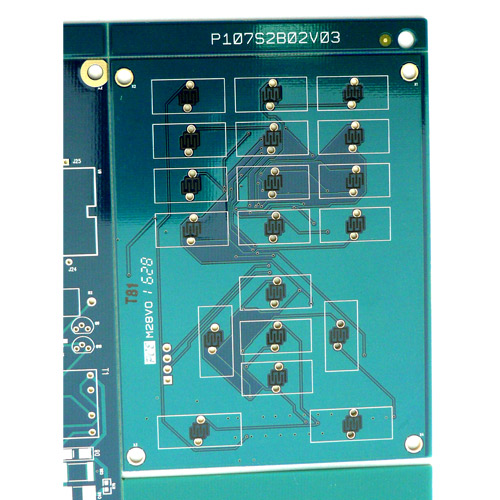

Carbon Printing

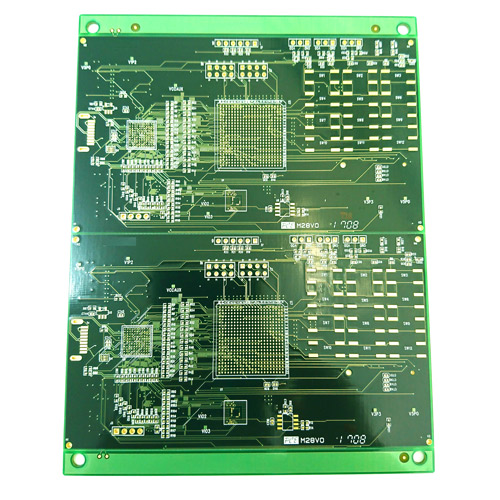

BGA & Micro BGA

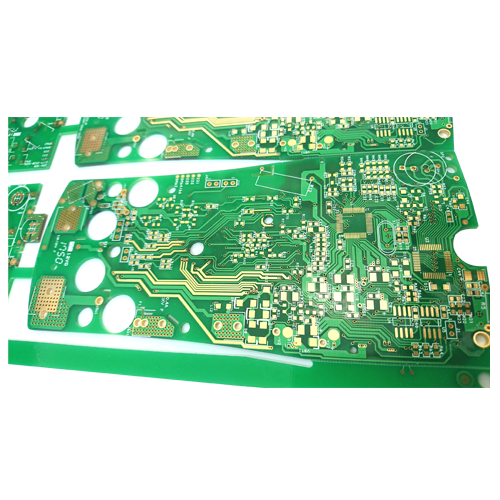

Electrolytic Gold

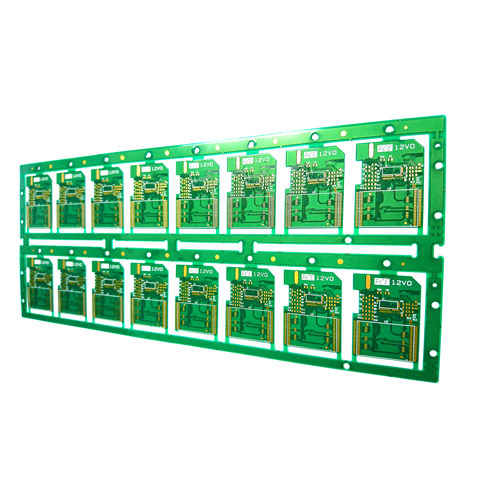

0.2mm Thickness

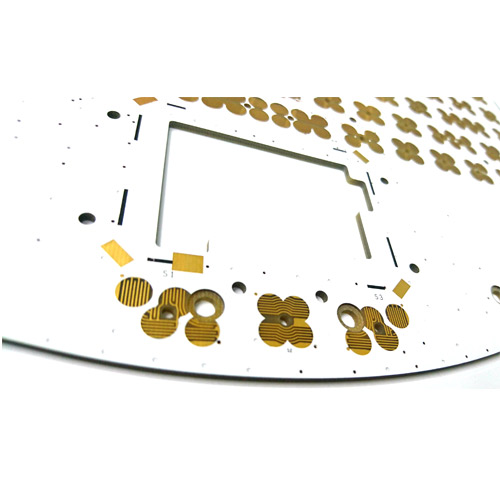

Depth Control Drilling
Rigid PCB Capability
| Feature | Capability | |
|---|---|---|
| Lamination | Layer count | 1-32 layers |
| Min. thickness | 4 mil(0.1 mm) | |
| Max working panel size | 24x31.5 inch(610x800mm) | |
| Max. aspect ratio | 10:1 | |
| Copper | Copper Thickness | 0.33~3.0 oz (11~105um) |
| Trace | Min. Line Width /Space | 3/3 mil |
| Routing | Dimension tolerance | +/- 2 mil (0.5mm) |
| Solder Mask | S/M minimum dam width | 2.5 mil |
| Impedance Control | Differential pair | +/- 10% |
| Mechanical Drilling | Min. drilling hole size | 4 mil(0.1mm) |
| 3 Axis | Depth control accuracy | +/- 2mil |
| Material Availability | FR-4, High Tg FR-4, Halogen-free FR-4, Metal Core, Low Dk/Df (ISOLA/ Rogers) | |
| Finish Availability | Lead-free HASL, HASL, OSP, ENIG, Pattern Gold Plating, Immersion Silver/Tin, Carbon Ink | |
